SDQ12-150-R
Buy with confidence from
Components-IC.com
SDQ12-150-R is warrantied and traceable.

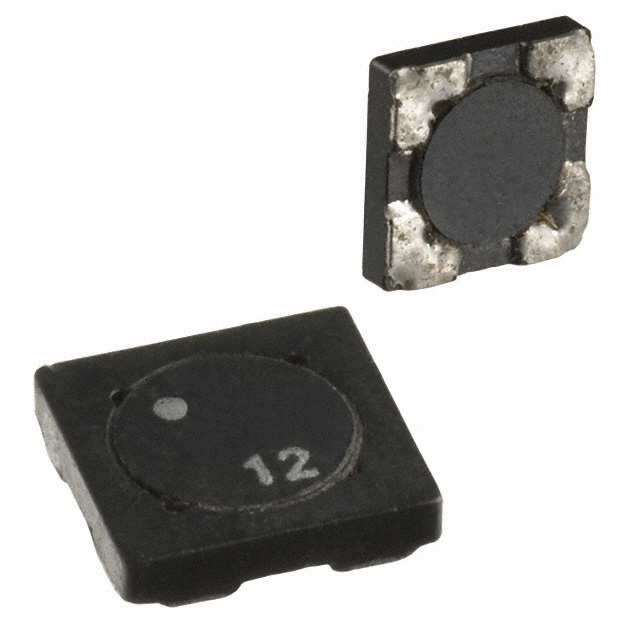

SDQ12-150-R
| Manufacturer | Bussmann (Eaton) |
|---|---|
| Description | INDUCT ARRAY 2 COIL 15.21UH SMD |
| Category | Inductors, Coils, Chokes |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Tolerance | ±20% |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Shielding | Shielded |
| Series | SDQ |
| Ratings | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Other Names | 513-1828-2 SDQ12-150-R-ND SDQ12150R |
| Operating Temperature | -40°C ~ 125°C |
| Number of Coils | 2 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Series | 60.84µH |
| Inductance - Connected In Parallel | 15.21µH |
| Height | 0.047" (1.19mm) |
| Detailed Description | Shielded 2 Coil Inductor Array 60.84µH Inductance - Connected in Series 15.21µH Inductance - Connected in Parallel 576.6 mOhm DC Resistance (DCR) - Parallel 658mA Nonstandard |
| DC Resistance (DCR) - Series | 2.31 Ohm |
| DC Resistance (DCR) - Parallel | 576.6 mOhm |
| Current Saturation - Series | 390mA |
| Current Saturation - Parallel | 779mA |
| Current Rating - Series | 329mA |
| Current Rating - Parallel | 658mA |
| RFQ Email | sales@components-ic.com or Inquires online |
| RFQ | |
Request Quote
