IRF9540
Buy with confidence from
Components-IC.com
IRF9540 is warrantied and traceable.

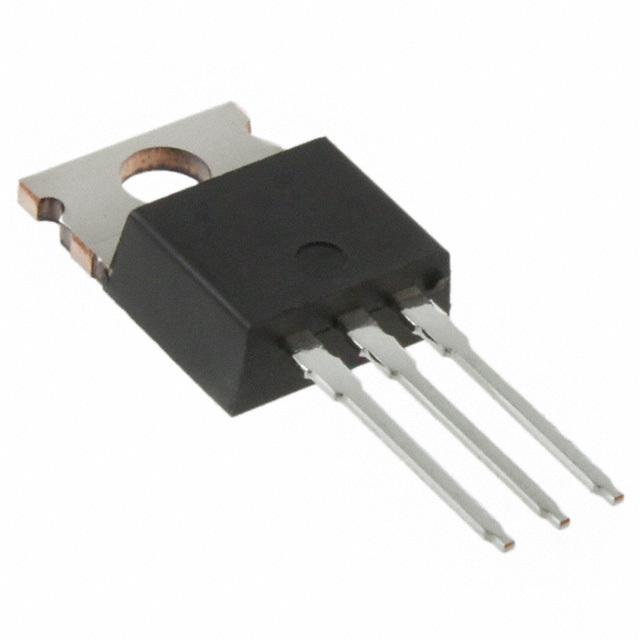

IRF9540
| Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|
| Description | MOSFET P-CH 100V 19A TO-220AB |
| Category | Discrete Semiconductor Products |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-220AB |
| Series | - |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 11A, 10V |
| Power Dissipation (Max) | 150W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Other Names | *IRF9540 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 61nC @ 10V |
| FET Type | P-Channel |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | P-Channel 100V 19A (Tc) 150W (Tc) Through Hole TO-220AB |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| RFQ Email | sales@components-ic.com or Inquires online |
| RFQ | |
Request Quote
